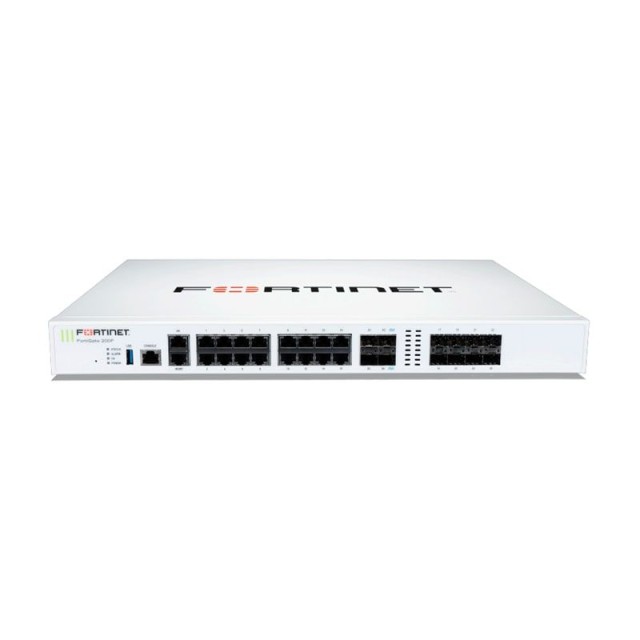

FG-200F - Fortinet Firewalls

Interfaces and Modules

16

GE RJ45 Ports

1/1

2

10 GE SFP+ FortiLink Slots (default)

2

10 GE SFP+ Slots

1

USB Port

1

Console Port (RJ45)

0

Onboard Storage

0

Included Transceivers

System Performance — Enterprise Traffic Mix

5Gbps

IPS Throughput

3.5Gbps

NGFW Throughput

3Gbps

Threat Protection Throughput

System Performance and Capacity

27/27/11Gbps

IPv4 Firewall Throughput

(1518 / 512 / 64 byte, UDP)

4.78μs

Firewall Latency (64 byte, UDP)

16.5Mpps

Firewall Throughput (Packet per Second)

3Milion

Concurrent Sessions (TCP)

280,000

New Sessions/Second (TCP)

10,000

Firewall Policies

13Gbps

IPsec VPN Throughput (512 byte)

2,500

Gateway-to-Gateway IPsec VPN Tunnels

16,000

Client-to-Gateway IPsec VPN Tunnels

2Gbps

SSL-VPN Throughput

500

Concurrent SSL-VPN Users

(Recommended Maximum, Tunnel Mode)

4Gbps

SSL Inspection Throughput (IPS, avg. HTTPS)

3,500

SSL Inspection CPS (IPS, avg. HTTPS)

300,000

SSL Inspection Concurrent Session (IPS, avg. HTTPS)

13Gbps

Application Control Throughput (HTTP 64K)

20Gbps

CAPWAP Throughput (HTTP 64K)

10 / 10

Virtual Domains (Default / Maximum)

64

Maximum Number of FortiSwitches Supported

256 / 128

Maximum Number of FortiAPs (Total / Tunnel)

5,000

Maximum Number of FortiTokens

Active, Active-Active, Passive, Clustering

High Availability Configurations

Dimensions and Power

1.73 x 17.01 x 13.47

Height x Width x Length (inches)

44x 432x 342

Height x Width x Length (mm)

9.92lbs (4.5kg)

Weight

Ear Mount, 1RU

Form Factor

100–240V AC, 50–60Hz

AC Power Supply

101.92W / 118.90W

Power Consumption (Average / Maximum)

100V / 2A, 240V / 1.2A

Current (Maximum)

405.70 BTU/h

Heat Dissipation

Yes

Redundant Power Supplies

Operating Environment and Certifications

32–104°F (0–40°C)

Operating Temperature

-31–158°F (-35–70°C)

Storage Temperature

20–90%non-condensing

Humidity

49.9dBA

Noise Level

Side to Back

Forced Airflow

Up to 7,400ft (2,250m)

Operating Altitude

FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI

Compliance

ICSA Labs: Firewall, IPsec,

IPS, Antivirus, SSL-VPN, IPv6

Certifications
